Req 3b — Focus & Adjustment

Getting a sharp, comfortable view through binoculars is not just about turning the focus wheel. You need to calibrate the optics to your own eyes first. Most people’s eyes are slightly different from each other, and binoculars are designed to compensate for that. Here is how to set them up properly.

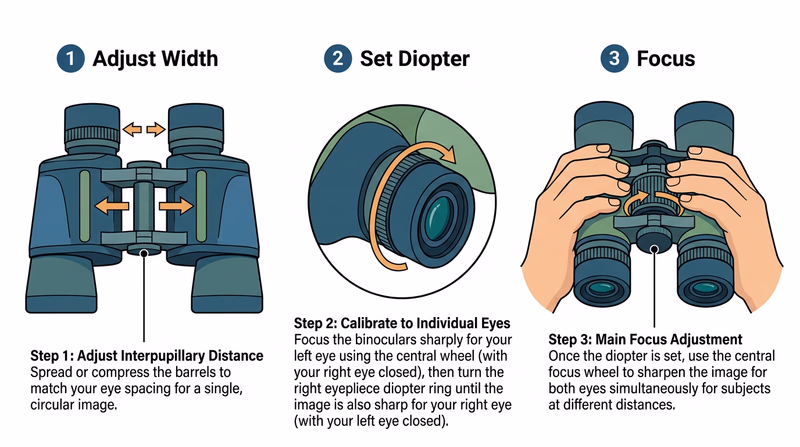

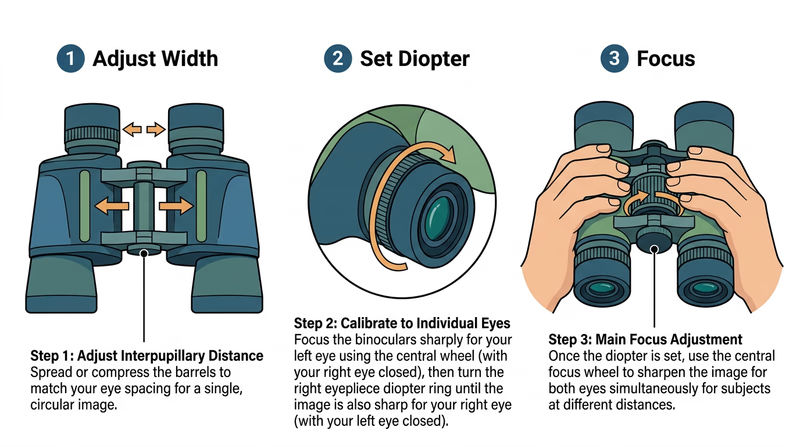

Step-by-Step: Adjusting and Focusing Binoculars

Step 1: Adjust the Interpupillary Distance

Binoculars have a hinge in the center that lets you adjust the distance between the two barrels. Fold or unfold the barrels until you see a single, round circle of light — not two overlapping circles and not a figure-eight shape. This matches the binoculars to the distance between your eyes.

Step 2: Set the Diopter

The diopter adjustment ring is usually on the right eyepiece (sometimes on the center focus knob). It compensates for differences in vision between your two eyes. Here is how to set it:

1. Close your right eye (or cover the right lens).
2. Look through the left barrel at a distant object with sharp detail — a sign, a tree branch, a building.
3. Turn the center focus wheel until that object is perfectly sharp through your left eye.
4. Now close your left eye (or cover the left lens).
5. Look through the right barrel at the same object.
6. Turn the diopter ring on the right eyepiece until the object is sharp through your right eye. Do not touch the center focus wheel during this step.
7. Open both eyes. The image should be crisp and comfortable.

Once the diopter is set, you generally do not need to adjust it again unless someone else uses your binoculars. Some birders note their diopter setting so they can reset it quickly.

Step 3: Focus in the Field

Once your diopter is set, focusing on a bird is simple: turn the center focus wheel until the image is sharp. With practice, you will be able to focus on a bird in under a second.

Quick-focus technique: Keep your binoculars around your neck, set to focus at a “resting distance” of about 30–50 feet. Most birds you spot will be in that range, so you will only need a small adjustment.

Focusing a Spotting Scope

Spotting scopes use a similar focus wheel, but because of the higher magnification, focusing is more sensitive. Small turns make big changes. Start at low magnification (e.g., 20x) to find your subject, focus until sharp, then zoom in to higher magnification and refine the focus.

Focusing a Monocular

A monocular typically has a single focus wheel on the barrel. Since there is only one eyepiece, there is no diopter adjustment or interpupillary distance to set.

Eye Relief and Eyecups

If you wear glasses, twist or fold down the rubber eyecups on your binoculars so you can get your glasses closer to the eyepiece lenses. If you do not wear glasses, extend the eyecups for a comfortable viewing position. Proper eye relief prevents the dark crescent shadows that appear at the edges of the image.

Your optics are adjusted and focused. Next, learn how to keep those lenses clean and in top condition.
