Req 7d1 — Parts of a Snowshoe

Modern snowshoes are built from aluminum frames or molded plastic decks with a binding system in the center. Knowing the names of the parts helps you understand how snowshoes work and how to discuss maintenance and selection intelligently.

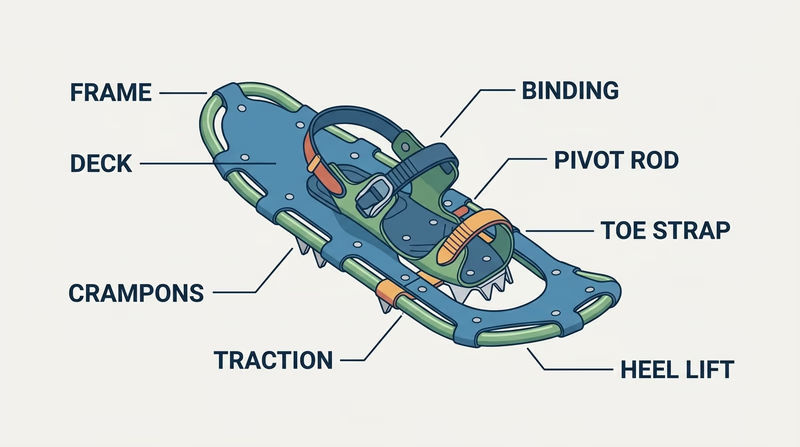

The Main Parts of a Snowshoe

Frame The outer structural ring or frame that defines the shape of the snowshoe. On traditional wood-and-rawhide snowshoes, this was a bent wood oval. On modern snowshoes, it is typically tubular aluminum or a rigid polymer shell. The frame provides structural integrity and holds the deck.

Deck (Platform) The body of the snowshoe between the frame edges. The deck is a solid or mesh surface that supports the hiker’s weight and provides flotation in snow. On aluminum-frame snowshoes, the deck is typically a waterproof nylon or polyester fabric stretched between the rails. On plastic-shell snowshoes, the deck is the molded platform itself.

Binding The system that attaches the snowshoe to your boot. The binding sits in the center of the deck over the pivot point. On most modern snowshoes, bindings use straps that wrap over the toe and around the heel. They must be adjustable to fit different boot sizes.

Pivot Point / Pivot Rod The hinge that allows your heel to lift freely with each step while the front of the snowshoe stays in contact with the snow. This is what makes snowshoeing feel like walking rather than sliding. The toe of the boot sits above the pivot; when you step, your heel rises but the snowshoe deck stays roughly flat.

Crampons / Traction System Metal spikes or cleats mounted on the underside of the snowshoe, typically at the toe and heel areas. Crampons dig into hard-packed or icy snow to provide traction when climbing or traversing. Without them, snowshoes would slide on any surface harder than fresh powder.

Heel Lift (on some models) A small bail or wire that can be flipped up under the heel to reduce calf strain when climbing steep terrain. When the heel lift is deployed, your foot is at a slightly different angle, taking pressure off the Achilles tendon and calf muscles on long uphill stretches.

Toe Cord / Toe Strap Part of the binding system, this strap secures the toe of the boot to the snowshoe. On some designs, the toe cord is a pivoting rubber or plastic part that grips the boot rather than a strap.
